트윈 스크류 피쉬 피드 압출기
제품 설명

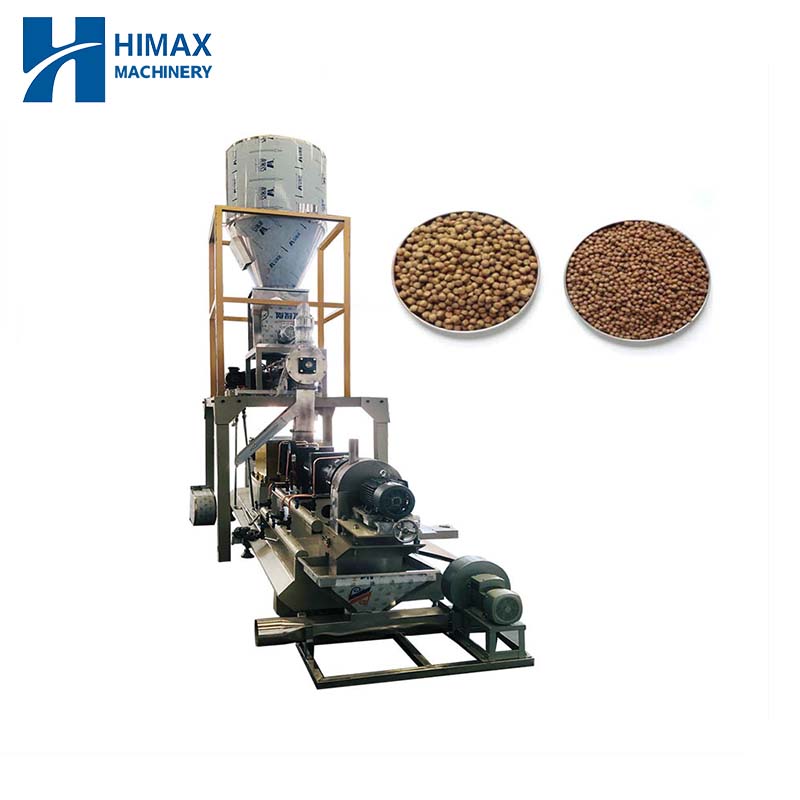

Aquatic feed pellet making machine made by our twin screw extruder machine. Mainly use corn flour, fish powder, meat powder and some food additive as main raw material, through mixing, extruding, roasting, flavoring to get the final puffed Fish Feed food. By help of minerals, rich nutritional content and protein enrich fish growth life, ideal choice for factory. This line is fully automatic, high capacity and with different of shapes. It can produce such as cat food, dog food, fish food, bird food and so on.
순서도
Mixer–>Screw Conveyor –>Twin-screw extruder –>Air conveyor–>Dryer–>Hoister–>Flavoring machine–>Cooler
기술적인 매개변수
| 모델 | HM65 | HM70 | HM85 | HM90 | HM95 |
| 입력 전압 | 380v/50hz | 380v/50hz | 380v/50hz | 380v/50hz | 380v/50hz |
| 설치된 전원 | 70kw | 90kw | 120kw | 96kw | 180kw |
| 전력 소비 | 40kw | 50kw | 100kw | 80kw | 120kw |
| 용량 | 120-150kg/h | 200-250kg/h | 400-500kg/h | 800-1000kg/h | 800-1000kg/h |
| 치수 | 2200*120*220cm | 2400*150*220cm | 2800*350*230cm | 3000*350*230cm | 4500*250*250cm |
기계 세부 사항을 만드는 물고기 사료
Mixer: 304stainless steel material
1.Makes the raw material adding to water and liquid chemical additive fully mixed.
2.The discharge hole adopts the new handle-opened design. It has the good seal
스크류 컨베이어
The mixed materials can be conveyed in the stainless steel roller to the feeding machine (feeder) of extruder without any leaking,
dusting and pollution; Feed quantity and speed is even and stable.
트윈 스크류 압출기
The twin -screw extruder is made of the feeding system, extruding system, cutting system, heating system, conditioner and
controlling system.
1.The screws are made of the alloy steel;
2.The forced lubrication system ;
3.Auto-temperature control system.
완제품
