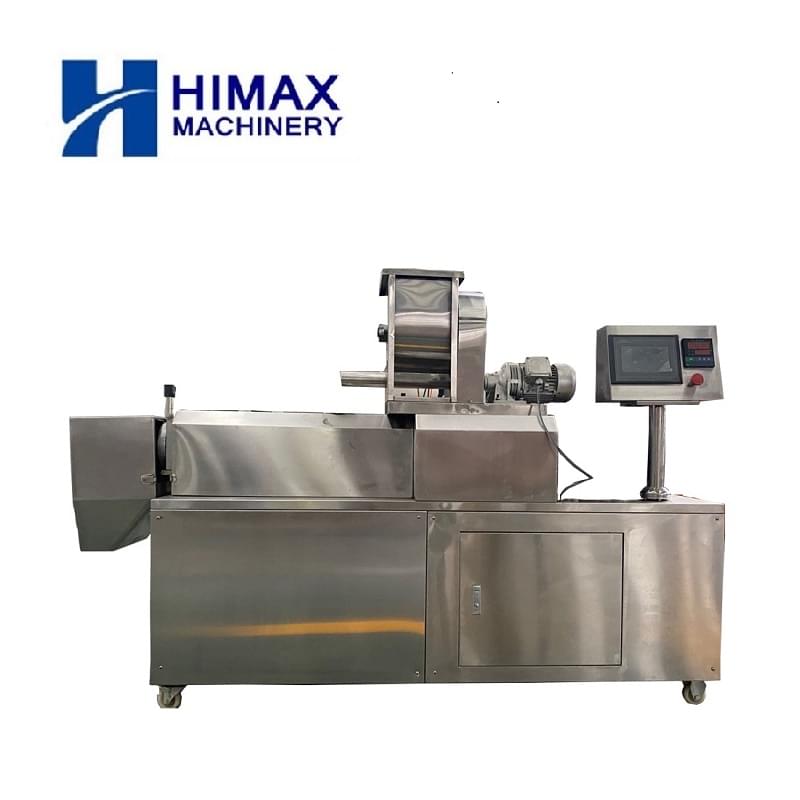

Lab Twin Screw Extruder HM30/HM35
Product description
Lab twin-screw extruder is our company research for universities, research institutes and large and medium-sized enterprises engaged in various extrusion, extruded maturation, extruded variability study omnipotent models. It has gone through four generations of improvements to adapt to WPC materials , wood powder, potato starch, protein, chemicals, plastics, rubber and other raw materials are vastly different for a variety of experiments. Powerful, easy to operate and simply of parameters adjustment, test data accurate, easy maintenance.
Feature
①.Food extruder is our company research for universities, research institutes and large and medium-sized enterprises engaged in various extrusion, extruded maturation, extruded variability study omnipotent models.
②.It has gone through four generations of improvements to adapt to cereals, potato starch, protein, chemicals, plastics, rubber and other raw materials are vastly different for a variety of experiments. Powerful, easy to operate and simplely of parameters adjustment, test data accurate, easy maintenance .
Performance characteristics of lab twin screw extruder for making fish food
③The screws are made by ally steel and special craft, the screw life is longer, uses building block system structure, may combine willfully.
④The forced lubrication system, by guaranteed equipment transmission longer life.
⑤Visible auto-temperature controlling system, make the temperature-controlling to be more direct-viewing, parameter to be more precise.
⑥Lab Twin-screw extruder system:Independent heating areas and a heating ring made
⑦Feed Inlet:At least 3 feed lines are used to control the residence time of the material in the pipeline. Optionally, a metering pump can be used to pressurize the liquid material through the second and third feed lines
Technical parameters
No. | Item | Details | No. | Item | Details | |
1 | Engine power | 5.5KW/7.5KW | 15 | Temperature precision | ±1.0℃ | |
2 | Engine speed-control | Frequency speed-control | 16 | Number of measuring temperature point | 1/2/3(customized) | |
3 | Screw diameter | ∮30mm/35mm | 17 | Output | 10-25KG/H | |
4 | Matching screw (one set): | Extruding and expanding vegetable protein screw | 18 | Material of cover | SUS 304 | |
5 | Screw central distance | 26mm | 19 | Pressure scope | 0-30MPa | |
6 | Speed range | 0-500rpm | 20 | Pressure precision | 0.1MPa | |
7 | Screw mode | Building block-combined type | 21 | Number of measuring pressure point | 3 point | |
8 | First series L/D | 11.6:12.7:23 | 22 | Model cooling way | Model Water | |
9 | Second Series L/D | 9.3 : 15: 20.6 | 23 | Number of raw material feeding point | 1/2/3(customized) | |
10 | Length of screw | 750mm | 24 | Number of water feeding point | 3 | |
11 | Material of screw | 38CrMoAl nitriding treatment | 25 | Filling Intake | 1/2/3(customized) | |
12 | Heating way | Electricity Heating | 26 | Water Intake | 1/2/3(customized) | |
13 | Cooling way | Water Cooling | 27 | Raw material Water Percentage Acceptance | 6-70% | |
14 | Temperature scope | 20℃-300℃ | 28 | Raw material percentage Acceptance | 25% | |
Brand LIst
No | Item | Brand |
1 | Motor Brand | Siemens |
2 | Control system | PLC |
3 | Inverter | Delta |
4 | Electricity parts | Schneider |
EACH CLIENT CAN ENJOY THE FOLLOWING
- Free consultation service before, during, and after sales;
- Free project planning and design services;
- Free debugging of equipment until everything is functional;
- Free management of equipments’ long distance shipping;
- Free training of equipment maintenance and operating personally;
- Free new production techniques and formulas;
- Provide 2 year warrantee and lifetime maintenance service;
PRE-SHIPMENT INSPECTION INCLUDES
1.Supplier should trial run whole line at supplier’s factory before shipment;
2.All raw materials for that trial run to be arranged by supplier at their cost.
INSTALLATION SUPERVISION AND COMMISSIONING
1.The customer will be asked to provide room, board, round-trip transportation, and anominal $100 daily subsidy per person.
2.The total length of the installation time depends on number and qualification of the available local stuff.A possible
delay of the installation period will be additionally invoiced.
